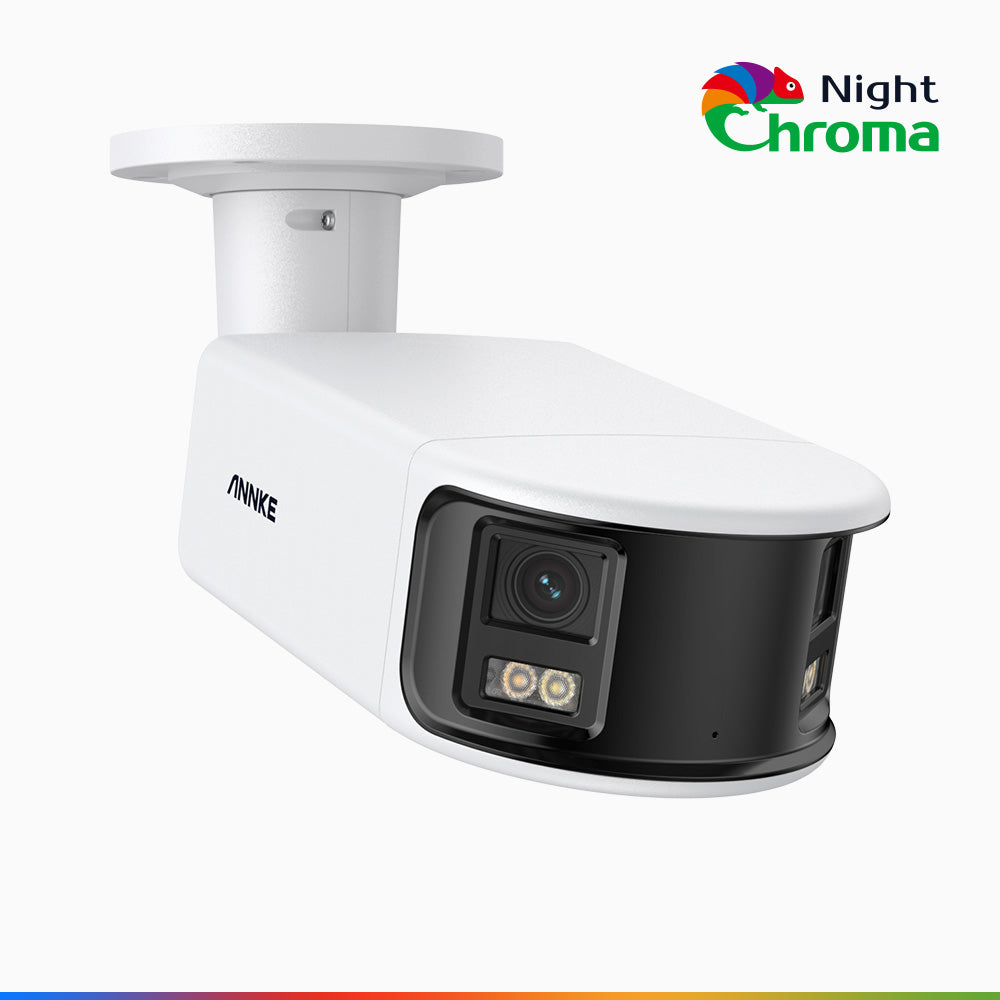

ANNKE NCD800 4K Panoramic PoE Dual Lens Security Camera - ANNKE Store

NightChromaTM NCD800 – 4K Outdoor Panoramic PoE Dual Lens Security Camera, f/1.0 Super Aperture (0.0005 Lux), Acme Color Night Vision, Active Siren and Strobe, Human & Vehicle Detection, Intelligent Behavior Analysis, Built-in Micphone

NightChromaTM NCD800 – 4K Outdoor Panoramic PoE Dual Lens Security Camera, f/1.0 Super Aperture (0.0005 Lux), Acme Color Night Vision, Active Siren and Strobe, Human & Vehicle Detection, Intelligent Behavior Analysis, Built-in Micphone

€299,99

€389,99

SKU: I91BI

Tipo
microSD
Note: .

Secure Checkout With:

  • Tags: 4K (8 MPX) , Audio Bidirezionale , Bullet , Colori Visione Notturna , doppia lente , Microfono Incorporato , Turret

    Dual-Lens 4K Plus Full Color
    Boasts to Be the World’s Very First

  • 4K

    Ultra HD Clarity
    Grasp all the detail

  • 2X

    Lenses & Sensor
    For 180° Coverage

  • Color

    Night Vision
    View Colors at night

  • AI 2.0

    Smart Detection
    More accurate alerts

  • Dual Lenses and Double Sensors
    Bring 4K UHD Clarity & 180° Coverage

    Equipped with dual lenses and double 4MP 1/1.8 BSI sensors, the camera provides unparalleled 4K Ultra HD videos at 5120 x 1440 resolution. You are allowed to zoom in and out to find out more details, even the faraway vehicle information like license or color, prove to be a doddle for the industry leading binocular camera.

    Seamlessly-Stitched 180° View
    by Image Fusion Algorithm

    Unique dual-lens design brings true 180° coverage. Two stitched frames shoot by the two lenses formed a 180° angle of view, which covers wider and broader areas. No blind spots in the viewing, and no distortion in the imaging.
    With pixel-level matching and calibration provided by Image Fusion Algorithm, the brightness and colors of two images are perfectly stitched so that the differences are incredibly slight.

    See Through the Night in Brightness & Colors
    Unique & Unrivaled ACME Color Night Vision

    TRUE acme color night vision can only be realized with top-grade materials industry-leading technologies. It is the combination of top-notch technologies including double 1/1.8 BSI sensors, f/1.0 super aperture, ISP (Image Signal Processor), 3D Color and dual supplemental lights, that creates true color night vision images. Easily recognized the face traits or vehicle license information even in complete darkness.

    Only security cameras with f/1.0 super aperture can capture acme color night vision. f/1.0 aperture, the largest aperture in video surveillance, collects 4X amount of lighting than f/1.0 aperture, to produce brighter images.

    That’s the best backside illumination sensor. It increases 2X amount of light sensing areas to deliver clearer footages. The high-performance ISP image processing tech helps produce high-fidelity & colorful details.

    The ISP provides professional high-quality pixel processing functions for high-performance real-time images. While 3D color is able to retain color accuracy especially in night-time videos.

    The soft supplement light turns on automatically in 0 lux illumination to ensure the best color night vision without glare. Always capture the best 4K colorful nocturnal videos even in complete darkness.

    99% Accurate Alerts
    by AI-Based Smart Motion 2.0

    The enhanced smart motion 2.0 algorithm, by integrating with AI human & vehicle detection and deep learning, is able to cut down most unwanted alerts by bugs, animals or inanimate objects like waving branches, raindrops, falling leaves, etc. Get motion alerts that really matter, and of 99% accuracy.

    Pre-Active Defense with Strobe & Siren Deterrence

    Built-in motion-triggered spotlight and strobe alarm enable the camera with a new level of defense to your property. The alarms will be triggered when whenever potential intruders, human beings or vehicles are detected to scare away intruders. Special perimeter intrusions including line crossing, and region entrance/exit detection also trigger pre-active defense, to keep your values under seamless protection.

    Flexibly customize the siren sound among 12 voice modes, and the volume (up to 95 dB) at your will. 4 flashing modes of the strobe are set. External audio devices are allowed to integrate with the camera for more flexibly customization.

    Not Just Watch, You Hear & Speak

    The built-in noise-canceling microphone can filter the environment noise automatically, and pick up the voice from up to 20 ft away, to help produce videos with HiFi volume quality.

    Noise-Cancelling Microphone

    The built-in noise-canceling microphone can filter the environment noise automatically, and pick up the voice from up to 20 ft away, to help produce videos with HiFi volume quality.

    Two-Way Audio

    2-way audio enhances the security coverage & the ability to interpret events. Talk to the delivery man at your doorstep to confirm the package delivery. Say “Hi” to your guests – a camera that can see, hear & talk.

    Built to be Prominent in the Harshest Climates

    IP67 rated, the powerful weatherproof camera, is designed to work for extreme indoor & outdoor use from -22 °F/-30 °C to 140 °F/60 °C. Whatever the scorching weather or the freezing climates, the camera still works perfectly to produce perfect 4K videos without the degraded resolution.

    Made from the heavy-duty aluminum used in the construction of airplanes, the camera housing can withstand large impacts and is highly resistant to corrosion. Even the Force 8 gale of wind speed up to 75 knots proves to be a piece of cake for the camera. Provide you with long-lasting and durable protection.

  • Metal

    Rugged Housing

  • 140 °F | 60 °C

    Hot Rating

  • -22 °F | -30 °C

    Cold Rating

  • IP67

    Water Rating

  • Remote Viewing on the Go

    This all-in-one camera is designed for use with our innovative & intuitive ANNKE Vision App. You can quickly & easily control your camera remotely via your smartphones, tablets or computer to keep tabs on your premise or the business site. Be in the focus wherever and whenever.

    24/7 Monitoring with NVR, NAS, and MicroSD Card

    The camera only works perfectly ANP800 and ANP1600 network recorders for non-stop recording, live stream & playback. For longer video storage, NAS is an optimal option for you to store important moments. A microSD card is required if you want to use the camera standalone, without monthly cloud storage fees.

    Small on Prices, Big on Features

  • Advanced H.265+ coding

    H.265+ coding helps the camera record longer videos and consumes less bandwidth. Save your budget on buying more HDDs.

  • PoE or DC Power

    Power on the camera via PoE with an NVR/PoE injector, or plug it into an outlet for the power supply.

  • Placed at More Areas

    Install the dual-lens camera at somewhere wider for like parking lots, parks, roundabouts, stadiums, intersections and more!

  • Customized Siren & Strobe Alerts

    Customize the siren alarms freely even with your own vocal, or the lighting deterrence among various lighting modes.

  • Specifica

    Download NCD800 Specification

    Camera
    Main StreamWhen WDR is On:50 Hz: 12.5 fps (5120 × 1440) 60 Hz: 15 fps (5120 × 1440)
    When WDR is Off:50 Hz: 20 fps (5120 × 1440)  60 Hz: 20 fps (5120 × 1440)
    Sub StreamWhen WDR is On:50 Hz: 12.5 fps (1920 × 536, 960 × 272)60 Hz: 15 fps (1920 × 536, 960 × 272)
    When WDR is Off:50 Hz: 20 fps (1920 × 536, 960 × 272)60 Hz: 20 fps (1920 × 536, 960 × 272)
    Image sensor2×1/1.8" Progressive Scan CMOS Video compressionH.265+/H.265/H.264+/H.264
    Video Bit Raten32 Kbps to 16 Mbps Built-in MicrophoneYes, support environment noise filtering
    Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Built-in SpeakerYes, max. sound pressure: 10 cm: 95 dB
    LensDual lens: 4 mm Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
    Angle of ViewHorizontal FOV: 180° ± 10°, Vertical FOV: 44° DORI4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m
    Supplement LightYellow warm light Supplement Light RangeUp to 40 m
    Image Parameters SwitchYes Image EnhancementBLC, HLC, 3D DNR
    Wide Dynamic Range130dB WDR Basic EventMotion detection (support human and vehicle detection), video tampering
    Network ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,
    IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, Onvif, ISAPI,
    Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection,(support human and vehicle detection)
    Flashing Light alarmSupport(Parameters adjustable,can be triggered from APP) Audio AlarmSupport(Parameters adjustable,support custom audio, can be triggered from APP)
    Main StreamWhen WDR is On:50 Hz: 12.5 fps (5120 × 1440) 60 Hz: 15 fps (5120 × 1440)
    When WDR is Off:50 Hz: 20 fps (5120 × 1440)  60 Hz: 20 fps (5120 × 1440)
    Image sensor2×1/1.8" Progressive Scan CMOS
    Video Bit Raten32 Kbps to 16 Mbps
    Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
    LensDual lens: 4 mm
    Angle of ViewHorizontal FOV: 180° ± 10°, Vertical FOV: 44°
    Supplement LightYellow warm light
    Image Parameters SwitchYes
    Wide Dynamic Range130dB WDR
    Network ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,
    IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, Onvif, ISAPI,
    Flashing Light alarmSupport(Parameters adjustable,can be triggered from APP)
    Sub Stream When WDR is On:50 Hz: 12.5 fps (1920 × 536, 960 × 272)60 Hz: 15 fps (1920 × 536, 960 × 272)
    When WDR is Off:50 Hz: 20 fps (1920 × 536, 960 × 272)60 Hz: 20 fps (1920 × 536, 960 × 272)
    Video compression H.265+/H.265/H.264+/H.264
    Built-in Microphone Yes, support environment noise filtering
    Built-in Speaker Yes, max. sound pressure: 10 cm: 95 dB
    Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
    DORI 4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m
    Supplement Light Range Up to 40 m
    Image Enhancement BLC, HLC, 3D DNR
    Basic Event Motion detection (support human and vehicle detection), video tampering
    Smart Event Line crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection,(support human and vehicle detection)
    Audio Alarm Support(Parameters adjustable,support custom audio, can be triggered from APP)
    General
    HousingMetal, White color Operating PowerPoE (802.3af),12 VDC ± 25%,Ø 5.5 mm coaxial power plug
    Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB, support NAS, NVR,
    Audio input/output1 input (line in),1 output (line out) Alarm nput/output1 input, 1 output (max. 24 VDC, 1 A)
    Hardware ResetYes Operating Temperature-22 °F – 140 °F /-30 °C – 60 °C
    Indoor/OutdoorIndoor/Outdoor Weatherproof RatingIP67
    Dimension (L x W x H)118.6 mm × 105.1 mm × 305.4 mm (4.7" × 4.1" × 12") WeightApprox. 1420 g (3.1 lb.)
    HousingMetal, White color
    Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
    Audio input/output1 input (line in),1 output (line out)
    Hardware ResetYes
    Indoor/OutdoorIndoor/Outdoor
    Dimension (L x W x H)118.6 mm × 105.1 mm × 305.4 mm (4.7" × 4.1" × 12")
    Operating Power PoE (802.3af),12 VDC ± 25%,Ø 5.5 mm coaxial power plug
    Storage Built-in micro SD/SDHC/SDXC slot, up to 256 GB, support NAS, NVR,
    Alarm nput/output 1 input, 1 output (max. 24 VDC, 1 A)
    Operating Temperature -22 °F – 140 °F /-30 °C – 60 °C
    Weatherproof Rating IP67
    Weight Approx. 1420 g (3.1 lb.)
