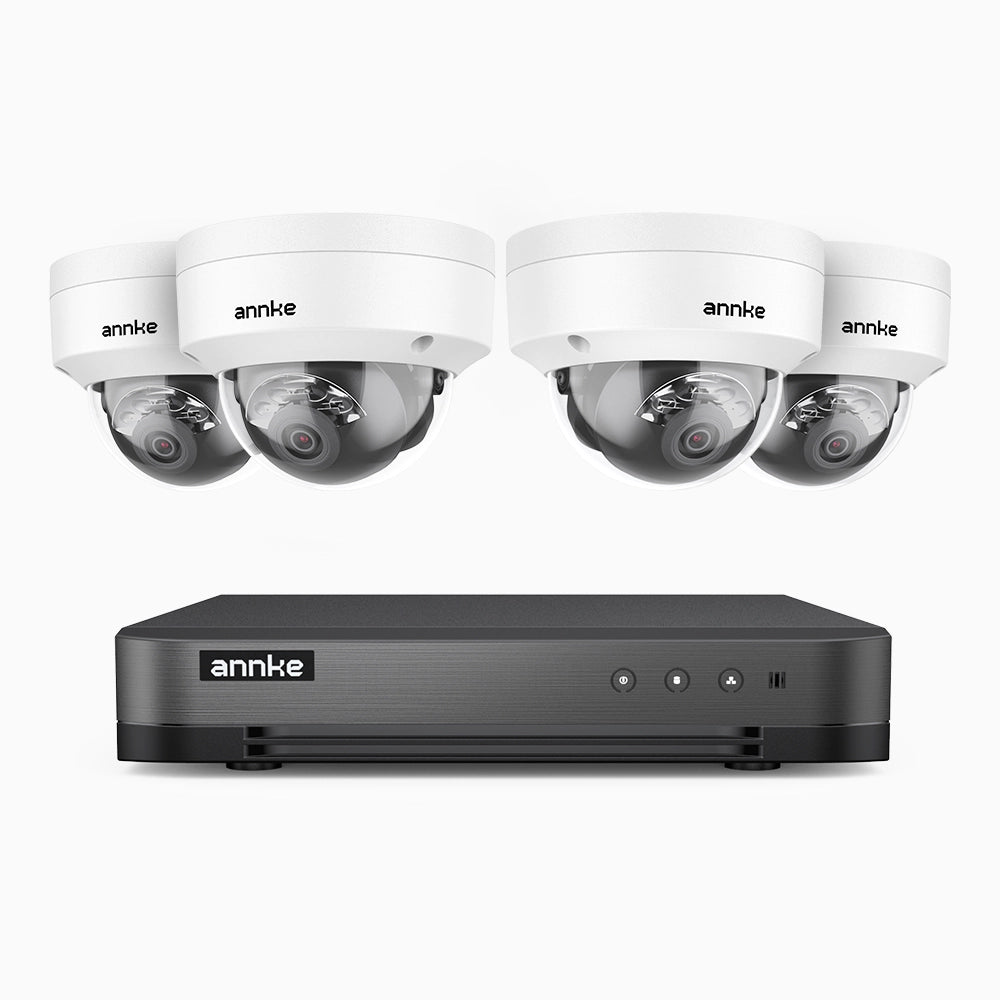

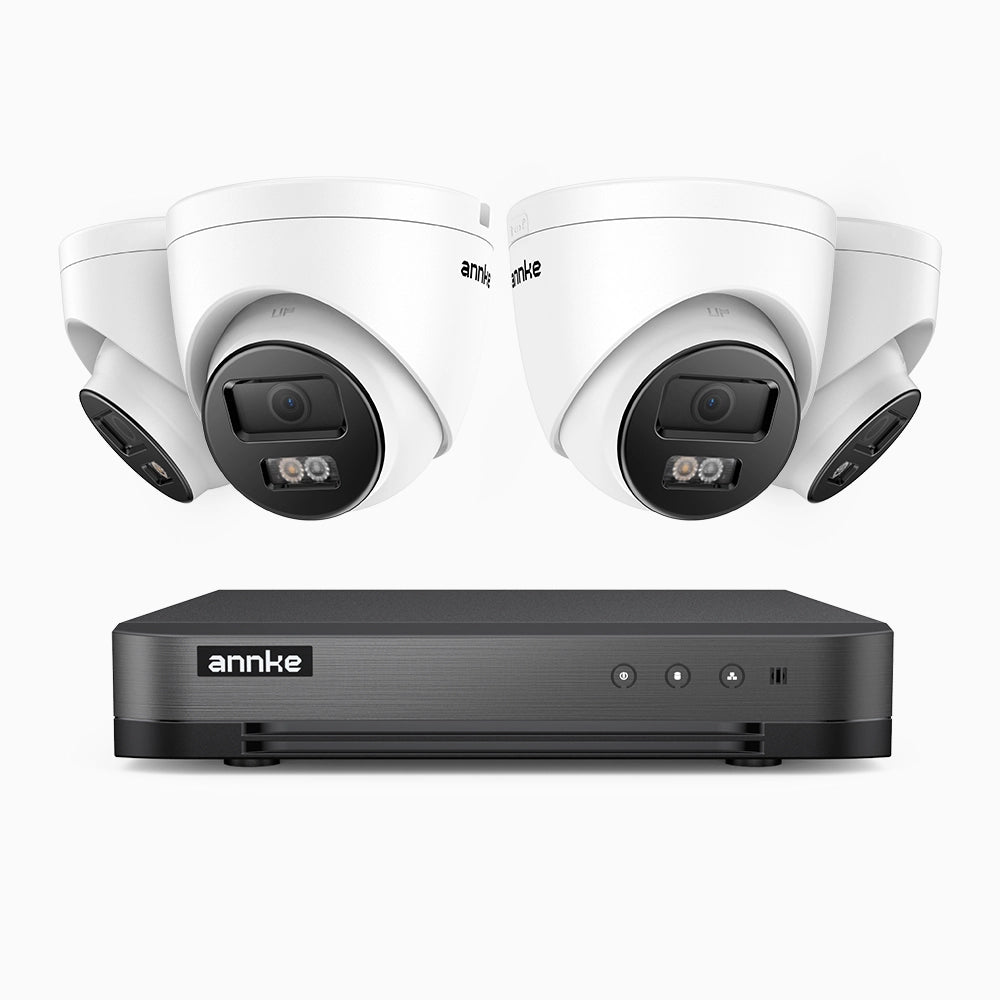

H800 - Kit videosorveglianza PoE 8 canali con 4 telecamere 8 MPX (4K), riconoscere di persone e veicoli, visione notturna a colori e IR,microfono integrato, supporta ONVIF e RTSP

H800 - Kit videosorveglianza PoE 8 canali con 4 telecamere 8 MPX (4K), riconoscere di persone e veicoli, visione notturna a colori e IR,microfono integrato, supporta ONVIF e RTSP

€249,99

€499,99

SKU: AE-N48PAW-I91DL04

Tipo
Hard Disk
Note:

Secure Checkout With:

  • Tags: 4 , 4K (8 MPX) , Bullet , Colori Visione Notturna , Dome , Doppia Luce Visione Notturna , EXIR Visione Notturna , NVR 8 canali , Turret

    H800 – Miglior sistema di telecamere di sicurezza 4K

    Rendi la protezione 4K UHD
    Disponibile ad ogni angolo

  • 8 Canali

    NVR Supporta
    Max. 8 Telecamere

  • H.265+

    Lungo tempo
    di registrazione

  • 96°

    Angolo di visuale
    Copre ampie aree

  • 30 M

    Visione notturna EXIR
    Vedi in Modo Chiaro di Notte

  • Impareggiabile 4K in tutte le condizioni

    La serie C800 è stata testata in quasi tutti gli scenari della vita quotidiana: garage, porte d'ingresso, negozi, ecc. Le telecamere sono in grado di riprendere filmati stabili e ad alta fedeltà senza riflessi in ogni ambiente di prova.

    Cattura dettagli notturni nitidi grazie alla doppia luce intelligente

    Modalità di doppia luce intelligente predefinita di notte, la fotocamera può individuare chiaramente il bersaglio di notte tramite la luce infrarossa. Se c'è un bersaglio in movimento, si attiverà la luce bianca e l'infrarosso si spegnerà, così da ottenere un'immagine a colori nitida. Inoltre, è possibile scegliere la modalità di luce infrarossa o di luce bianca completa.

    La tecnologia Smart IR risolve i problemi di immagine sovraesposta e sottoesposta di notte, fornendo video chiari in condizioni di luce estremamente bassa.

    Registrazione audio ad alta fedeltà

    Il microfono integrato con cancellazione di rumore può filtrare automaticamente il rumore dell'ambiente e raccogliere i suoni fino a 6 metri di distanza.

    Vera installazione PoE Plug & Play

    La connessione PoE è perfetta, poiché sia il video che l'alimentazione vengono trasferiti tramite lo stesso cavo di rete, e ti offre un'installazione flessibile. È possibile far passare un singolo cavo Ethernet tra la telecamera e l'NVR fino a 100 metri. Per distanze maggiori, è possibile collegare uno switch PoE (non incluso).

    Avanzato formato video H.265+

    La codifica ANNKE H.265+ aiuta la telecamera a registrare video più lunghi e a consumare meno banda. Risparmia le spese per l'acquisto di HDD aggiuntivi.

  • File di piccole dimensioni

    Invia file di dimensioni più piccole a un NVR/scheda SD (non inclusa) senza perdere la qualità 4K.

  • Lungo tempo di registrazione

    La codifica H.265+ permette un tempo di registrazione più lungo prima di sovrascrivere le vecchie registrazioni.

  • Visione in diretta 4K da remoto

    Guarda lo streaming live in 4K Ultra HD di alta qualità sui tuoi dispositivi intelligenti.

  • Una telecamera di sicurezza resistente alle intemperie

    Costruita con grado di protezione IP67, la telecamera IP rimane perfettamente funzionante anche se immersa in 1 m d'acqua per 30 minuti. La telecamera è stata testata in condizioni climatiche estremamente calde e fredde (-30 °C - 60 °C) e continua a registrare in eccezionale 4K Ultra HD, senza sfocature e senza distorsioni dell'immagine.

    Controlla le prestazioni reali resistenti alle intemperie IP67

  • ABS & Metallo

    Alloggiamento robusto

  • 60 °C

    Resistenza al caldo

  • -30 °C

    Resistenza al freddo

  • IP67

    Resistenza all'acqua

  • Visualizzazione remota in movimento

    Questo sistema tutto in uno è progettato per essere utilizzato con la nostra innovativa e intuitiva App ANNKE Vision. Puoi controllare rapidamente e facilmente il tuo sistema a distanza tramite i tuoi smartphone, tablet o computer.

    Prezzo piccolo, grandi funzionalità

  • Supporta RTSP e ONVIF

    Integra la telecamera con software di terze parti &e NVR 4K ONVIF, come Blue Iris, Synology e altri.

  • Aree di movimento personalizzate

    Personalizza le zone di movimento d’interesse, come garage, porta d'ingresso, ecc. per avvisi di movimento molto più rilevanti.

  • Ricevi avvisi di movimento

    Ricevi avvisi istantanei dall'app e messaggi via email quando vengono rilevati eventi di movimento.

  • Registrazione 24/7 senza Internet

    Il NVR e le telecamere si collegano l'un l'altro dopo la connessione e registrano video 24/7 senza Internet.

  • Specification

    Download H800 Specification

    What's in the Box
  • ➀ 1X NVR
  • ➁ Security Cameras (The quantity varies based on your choice.)
  • ➂ Remote Control
  • ➃ 60 ft/18 m Ethernet Cables 100 ft/30 m Ethernet Cables
  • ➄ Network Cable
  • ➅ HDMI Cable
  • ➆ Power Adapter
  • ➇ USB Mouse
  • ➈ User Manual
  • ➉ Screws
  • Camera
    Image Sensor1/2.4" Progressive Scan CMOS Max resolution3840*2160(8MP)
    Main Stream50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    Substream50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
    60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
    Video Bitrate32 Kbps - 16 Mbps Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC
    Audio InputBuilt-in Microphone, record with audio Lens4 mm
    Video CompressionMain stream: H.265+/H.265/H.264+/H.264
    Sub-stream: H.265/H.264/MJPEG
    Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
    Angle of ViewHorizontal FOV 78°, vertical FOV 38°, diagonal FOV 96° Supplement Light TypeSmart Dual-Light, IR, White Light
    Supplement Light RangeUp to 30 m Motion detection 2.0Supoort, include Human & Vehicle detection
    Image EnhancementBLC, HLC, 3D DNR Wide Dynamic Range120 dB WDR
    ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP APIOpen Network Video Interface Version (Profile S, Profile T, Profile G)
    Region of Interest (ROI)1 fixed region for main stream Privacy Mask4 programmable polygon privacy masks
    General FunctionRotate mode, mirror, password protection, remote access Ethernet1 RJ45 10 M/100 M self-adaptive Ethernet port
    Image Sensor1/2.4" Progressive Scan CMOS
    Main Stream50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    Video Bitrate32 Kbps - 16 Mbps
    Audio InputBuilt-in Microphone, record with audio
    Video CompressionMain stream: H.265+/H.265/H.264+/H.264
    Sub-stream: H.265/H.264/MJPEG
    Angle of ViewHorizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°
    Supplement Light RangeUp to 30 m
    Image EnhancementBLC, HLC, 3D DNR
    ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
    Region of Interest (ROI)1 fixed region for main stream
    General FunctionRotate mode, mirror, password protection, remote access
    Max resolution 3840*2160(8MP)
    Substream 50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
    60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
    Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC
    Lens 4 mm
    Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
    Supplement Light Type Smart Dual-Light, IR, White Light
    Motion detection 2.0 Supoort, include Human & Vehicle detection
    Wide Dynamic Range 120 dB WDR
    API Open Network Video Interface Version (Profile S, Profile T, Profile G)
    Privacy Mask 4 programmable polygon privacy masks
    Ethernet 1 RJ45 10 M/100 M self-adaptive Ethernet port
    General
    HousingMetal & Plastic ColorWhite & Black
    StorageBuilt-in microSD/SDHC/SDXC Slot, up to 512 GB Hardware ResetYes
    Operating PowerDC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W Operating Temperature-22 °F – 140 °F/-30 °C – 60 °C
    Indoor/Outdoor UseIndoor/Outdoor Interface ProtectionIP67
    Dimension (L X W X H)170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7") Weight0.6 lb./285 g
    HousingMetal & Plastic
    StorageBuilt-in microSD/SDHC/SDXC Slot, up to 512 GB
    Operating PowerDC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
    Indoor/Outdoor UseIndoor/Outdoor
    Dimension (L X W X H)170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7")
    Color White & Black
    Hardware Reset Yes
    Operating Temperature -22 °F – 140 °F/-30 °C – 60 °C
    Interface Protection IP67
    Weight 0.6 lb./285 g
    What's in the Box
  • ➀ 1X NVR
  • ➁ Security Cameras (The quantity varies based on your choice.)
  • ➂ Remote Control
  • ➃ 60 ft/18 m Ethernet Cables 100 ft/30 m Ethernet Cables
  • ➄ Network Cable
  • ➅ HDMI Cable
  • ➆ Power Adapter
  • ➇ USB Mouse
  • ➈ User Manual
  • ➉ Screws
  • Camera
    Image Sensor1/2.4" Progressive Scan CMOS Max resolution3840*2160(8MP)
    Video Bitrate32 Kbps - 16 Mbps Audio Compression3G.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC
    Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR Angle of ViewHorizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°
    Video CompressionMain stream: H.265+/H.265/H.264+/H.264
    Sub-stream: H.265/H.264/MJPEG
    Supplement Light TypeSmart Dual-Light, IR, White Light
    Supplement Light RangeUp to 30 m Motion detection 2.0Supoort, include Human & Vehicle detection
    Audio InputBuilt-in Microphone, record with audio Lens4 mm
    Main Stream50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    Substream50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
    60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
    Image EnhancementBLC, HLC, 3D DNR Wide Dynamic Range120 dB WDR
    ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP APIOpen Network Video Interface Version (Profile S, Profile T, Profile G)
    Region of Interest (ROI)1 fixed region for main stream Privacy Mask4 programmable polygon privacy masks
    General FunctionRotate mode, mirror, password protection, remote access Ethernet1 RJ45 10 M/100 M self-adaptive Ethernet port
    Image Sensor1/2.4" Progressive Scan CMOS
    Video Bitrate32 Kbps - 16 Mbps
    Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
    Video CompressionMain stream: H.265+/H.265/H.264+/H.264
    Sub-stream: H.265/H.264/MJPEG
    Supplement Light RangeUp to 30 m
    Audio InputBuilt-in Microphone, record with audio
    Main Stream50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    Image EnhancementBLC, HLC, 3D DNR
    ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
    Region of Interest (ROI)1 fixed region for main stream
    General FunctionRotate mode, mirror, password protection, remote access
    Max resolution 3840*2160(8MP)
    Audio Compression 3G.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC
    Angle of View Horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°
    Supplement Light Type Smart Dual-Light, IR, White Light
    Motion detection 2.0 Supoort, include Human & Vehicle detection
    Lens 4 mm
    Substream 50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
    60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
    Wide Dynamic Range 120 dB WDR
    API Open Network Video Interface Version (Profile S, Profile T, Profile G)
    Privacy Mask 4 programmable polygon privacy masks
    Ethernet 1 RJ45 10 M/100 M self-adaptive Ethernet port
    General
    HousingMetal & Plastic ColorWhite
    StorageBuilt-in microSD/SDHC/SDXC Slot, up to 512 GB Hardware ResetYes
    Operating PowerDC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W Operating Temperaturet-22 °F – 140 °F/-30 °C – 60 °C
    Indoor/Outdoor UseIndoor/Outdoor Interface ProtectionIP67 & IK08
    Dimension (L X W X H)Ø121.4 mm × 97.6 mm (Ø4.78" × 3.84") Weight1.2 lb./550 g
    HousingMetal & Plastic
    StorageBuilt-in microSD/SDHC/SDXC Slot, up to 512 GB
    Operating PowerDC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
    Indoor/Outdoor UseIndoor/Outdoor
    Dimension (L X W X H)Ø121.4 mm × 97.6 mm (Ø4.78" × 3.84")
    Color White
    Hardware Reset Yes
    Operating Temperaturet -22 °F – 140 °F/-30 °C – 60 °C
    Interface Protection IP67 & IK08
    Weight 1.2 lb./550 g
    What's in the Box
  • ➀ 1X NVR
  • ➁ Security Cameras (The quantity varies based on your choice.)
  • ➂ Remote Control
  • ➃ 60 ft/18 m Ethernet Cables 100 ft/30 m Ethernet Cables
  • ➄ Network Cable
  • ➅ HDMI Cable
  • ➆ Power Adapter
  • ➇ USB Mouse
  • ➈ User Manual
  • ➉ Screws
  • Camera
    Image Sensor1/2.4" Progressive Scan CMOS Max resolution3840*2160(8MP)
    Main Stream50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    Substream50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
    60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
    Video Bitrate32 Kbps - 16 Mbps Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC
    Audio InputBuilt-in Microphone, record with audio Lens4 mm
    Video CompressionMain stream: H.265+/H.265/H.264+/H.264
    Sub-stream: H.265/H.264/MJPEG
    Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
    Angle of ViewHorizontal FOV 78°, vertical FOV 38°, diagonal FOV 96° Supplement Light TypeSmart Dual-Light, IR, White Light
    Supplement Light RangeIR: up to 30 m, white Light: up to 20 m Motion detection 2.0Supoort, include Human & Vehicle detection
    Image EnhancementBLC, HLC, 3D DNR Wide Dynamic Range120 dB WDR
    ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP APIOpen Network Video Interface Version (Profile S, Profile T, Profile G)
    Region of Interest (ROI)1 fixed region for main stream Privacy Mask4 programmable polygon privacy masks
    General FunctionRotate mode, mirror, password protection, remote access Ethernet1 RJ45 10 M/100 M self-adaptive Ethernet port
    Image Sensor1/2.4" Progressive Scan CMOS
    Main Stream50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    Video Bitrate32 Kbps - 16 Mbps
    Audio InputBuilt-in Microphone, record with audio
    Video CompressionMain stream: H.265+/H.265/H.264+/H.264
    Sub-stream: H.265/H.264/MJPEG
    Angle of ViewHorizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°
    Supplement Light RangeIR: up to 30 m, white Light: up to 20 m
    Image EnhancementBLC, HLC, 3D DNR
    ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
    Region of Interest (ROI)1 fixed region for main stream
    General FunctionRotate mode, mirror, password protection, remote access
    Max resolution 3840*2160(8MP)
    Substream 50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
    60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
    Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC
    Lens 4 mm
    Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
    Supplement Light Type Smart Dual-Light, IR, White Light
    Motion detection 2.0 Supoort, include Human & Vehicle detection
    Wide Dynamic Range 120 dB WDR
    API Open Network Video Interface Version (Profile S, Profile T, Profile G)
    Privacy Mask 4 programmable polygon privacy masks
    Ethernet 1 RJ45 10 M/100 M self-adaptive Ethernet port
    General
    HousingMetal & Plastic ColorWhite
    StorageBuilt-in microSD/SDHC/SDXC Slot, up to 512 GB Hardware ResetYes
    Operating PowerDC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W Operating Temperature-22 °F – 140 °F/-30 °C – 60 °C
    Indoor/Outdoor UseIndoor/Outdoor Interface ProtectionIP67
    Dimension (L X W X H)Ø110 mm × 89.2 mm (Ø4.3" × 3.5") Weight0.7 lb./340 g
    HousingMetal & Plastic
    StorageBuilt-in microSD/SDHC/SDXC Slot, up to 512 GB
    Operating PowerDC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
    Indoor/Outdoor UseIndoor/Outdoor
    Dimension (L X W X H)Ø110 mm × 89.2 mm (Ø4.3" × 3.5")
    Color White
    Hardware Reset Yes
    Operating Temperature -22 °F – 140 °F/-30 °C – 60 °C
    Interface Protection IP67
    Weight 0.7 lb./340 g
    Video & Audio
    Video CompressionH.264+/H.264/H.265/H.265+/MPEG4 IP Video Input8CH PoE
    Video OutputHDMI up to 4K; VGA up to 1080p Audio Input/Output1/1 RCA
    Incoming Bandwidth80 M Max Recording ResolutionUp to 8MP (3840 X 2160)
    Max Playback ResolutionUp to 8MP (3840 X 2160) Max Playback Channel8CH
    Max Playback Capacity4CH @1080p; 1CH @8MP
    Video CompressionH.264+/H.264/H.265/H.265+/MPEG4
    Video OutputHDMI up to 4K; VGA up to 1080p
    Incoming Bandwidth80 M
    Max Playback ResolutionUp to 8MP (3840 X 2160)
    Max Playback Capacity4CH @1080p; 1CH @8MP
    IP Video Input 8CH PoE
    Audio Input/Output 1/1 RCA
    Max Recording Resolution Up to 8MP (3840 X 2160)
    Max Playback Channel 8CH
    Hard Drive
    HDD1 SATA Interface HDD CapacityUp to 6 TB Capacity for Each HDD
    HDD1 SATA Interface
    HDD Capacity Up to 6 TB Capacity for Each HDD
    External Interface
    Network InterfaceRJ45 X1 (10/100 M ) PoE8 Ports (IEEE802.3at / af)
    USB2X USB 2.0
    Network InterfaceRJ45 X1 (10/100 M )
    USB2X USB 2.0
    PoE 8 Ports (IEEE802.3at / af)
    General
    Operating PowerDC 48 V Working Temperature14 °F — 131 °F/-10 °C — +55 °C
    Dimensions (W X H X D)12.4” X 9.4” X 1.9”/315 X 240 X 48 mm Weight (Without Hard Disk)2.2 lbs./1 kg
    Power Consumption≤10 W (Without HDD and PoE)
    PoE: Max 25.5 W for Single Port
    Operating PowerDC 48 V
    Dimensions (W X H X D)12.4” X 9.4” X 1.9”/315 X 240 X 48 mm
    Working Temperature 14 °F — 131 °F/-10 °C — +55 °C
    Weight (Without Hard Disk) 2.2 lbs./1 kg
    Power Consumption≤10 W (Without HDD and PoE)
    PoE: Max 25.5 W for Single Port

    Customer Reviews

    Based on 11 reviews
    82%
    (9)
    0%
    (0)
    9%
    (1)
    9%
    (1)
    0%
    (0)
    F
    F.T.
    Tutto ok

    Venivo da un kit della più blasonata hik vision che mi ha dato solo problemi, questo è perfetto! Vero plug and play!

    A
    Alfonso PICILLO
    Very good

    Very good. The installation is very easy and the image quality is great 👍

    F
    Federico Zarini
    Prodotto ottimo

    Funzioni e qualità davvero alte. Peccato per le istruzioni cartacee scarne

    A
    Anonimo

    Buon prodotto

    L
    Luigi Boniotti
    deluso

    il kit non presenta le prestazioni viste nel tutorial
