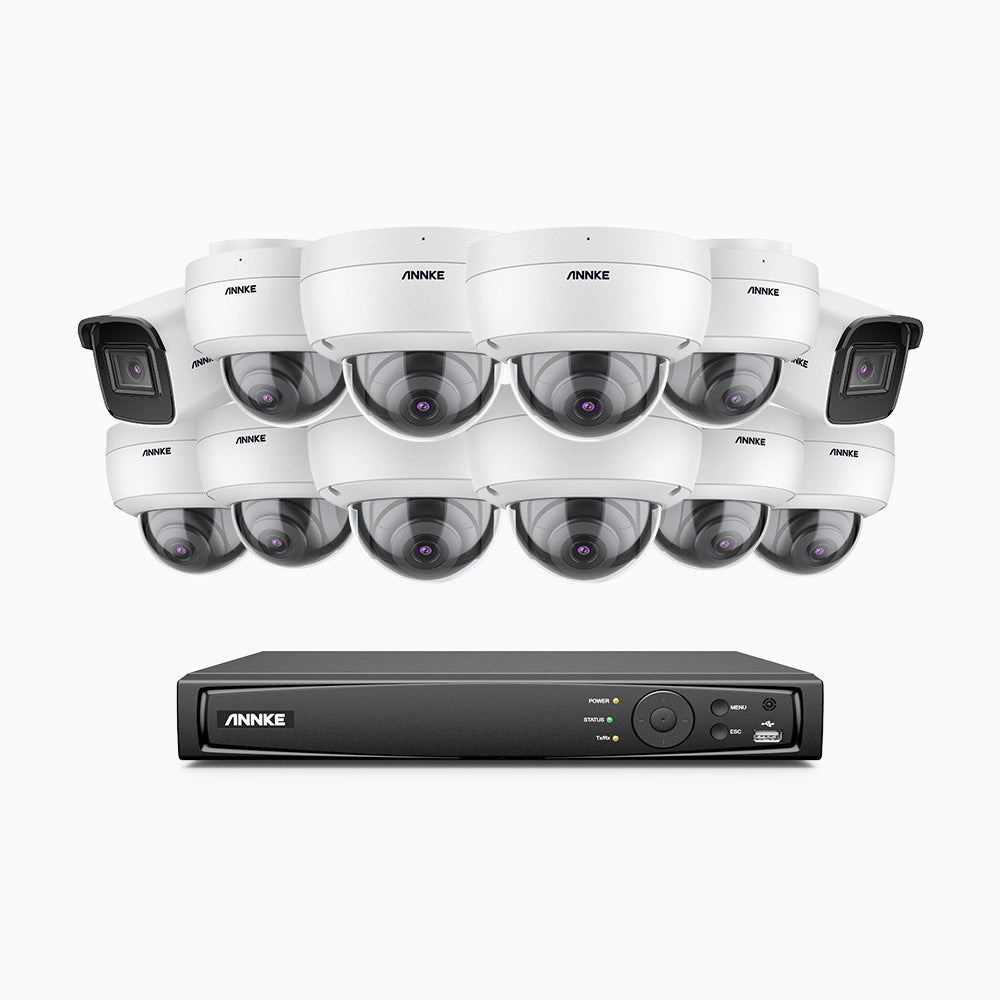

H800 - Kit videosorveglianza PoE 16 canali 8 MPX (4K), 2 telecamere bullet e 10 telecamere dome, resistente ai vandalismi IK10, visione notturna a colori e IR, microfono integrato, riconoscere di persone e veicoli, supporta ONVIF e RTSP

SKU: AE-N46PCK-I91DL02-I91DF10
€1.021,99
€1.649,99
€1.021,99
Hard Disk: senza HDD
Subtotale: €1.021,99
H800 - Kit videosorveglianza PoE 16 canali 8 MPX (4K), 2 telecamere bullet e 10 telecamere dome, resistente ai vandalismi IK10, visione notturna a colori e IR, microfono integrato, riconoscere di persone e veicoli, supporta ONVIF e RTSP

H800 - Kit videosorveglianza PoE 16 canali 8 MPX (4K), 2 telecamere bullet e 10 telecamere dome, resistente ai vandalismi IK10, visione notturna a colori e IR, microfono integrato, riconoscere di persone e veicoli, supporta ONVIF e RTSP

€1.649,99 €1.021,99

H800 - Kit videosorveglianza PoE 16 canali 8 MPX (4K), 2 telecamere bullet e 10 telecamere dome, resistente ai vandalismi IK10, visione notturna a colori e IR, microfono integrato, riconoscere di persone e veicoli, supporta ONVIF e RTSP

€1.649,99 €1.021,99
Hard Disk: senza HDD

Cattura i dettagli che contano in 4K

Rendi la sorveglianza quotidiana ancora più nitida grazie alla risoluzione 8 MP 4K Ultra HD (3840 × 2160). Dotata di sensore CMOS Progressive Scan da 1/2,4" e obiettivo fisso da 4 mm F1.6, la telecamera offre immagini dettagliate con un campo visivo di 78° in orizzontale e 96° in diagonale. Monitora chiaramente ingressi, vialetti, giardini e altre aree importanti con una copertura mirata e tutti i dettagli necessari per una sicurezza affidabile ogni giorno.

Rilevamento intelligente di ciò che conta

Grazie a Motion Detection 2.0, la telecamera da esterno rileva in modo intelligente persone e veicoli, contribuendo a ridurre gli avvisi non necessari causati da animali, rami in movimento, gocce di pioggia e altri movimenti irrilevanti. Quando viene rilevata un’attività importante, puoi ricevere una notifica tramite l’app e controllare rapidamente cosa sta accadendo, per un monitoraggio quotidiano più preciso ed efficiente.

Visione notturna intelligente Dual Light

Adatta la sorveglianza notturna alle diverse esigenze di sicurezza grazie alla tecnologia Smart Dual-Light. La telecamera combina luce IR e luce bianca, offrendo immagini nitide in bianco e nero con illuminazione a infrarossi e immagini a colori con luce bianca quando viene rilevata una persona o un veicolo. Diverse modalità di illuminazione garantiscono maggiore flessibilità, con una portata fino a 30 m.

Visione notturna intelligente Dual Light

Adatta la sorveglianza notturna alle diverse esigenze di sicurezza grazie alla tecnologia Smart Dual-Light. La telecamera combina luce IR e luce bianca, offrendo immagini nitide in bianco e nero con illuminazione a infrarossi e immagini a colori con luce bianca quando viene rilevata una persona o un veicolo. Diverse modalità di illuminazione garantiscono maggiore flessibilità, con una portata fino a 30 m.

True WDR 120 dB, nitidezza in ogni condizione di luce

Ingressi molto luminosi, ombre profonde e condizioni di luce variabili possono rendere più difficile distinguere i dettagli importanti. Grazie al WDR da 120 dB, la telecamera bilancia le aree chiare e scure per offrire immagini più nitide e utilizzabili. Le tecnologie BLC, HLC e 3D DNR migliorano ulteriormente la qualità dell’immagine, mentre l’illuminazione minima a colori di 0,005 Lux aiuta a mantenere immagini chiare anche in condizioni di scarsa illuminazione.

Tutte le aree sotto controllo con un unico sistema

Più telecamere coprono diverse aree, mentre l’NVR riunisce tutto in un unico sistema per il monitoraggio e la gestione centralizzati. Guarda i video in diretta da più telecamere, conserva tutte le registrazioni in un unico posto e rivedi facilmente gli eventi importanti senza dover gestire ogni dispositivo separatamente. Dall’ingresso al vialetto, al giardino e alle altre aree chiave, il sistema completo ti offre una visione più chiara e completa della tua proprietà.

Tutte le aree sotto controllo con un unico sistema

Più telecamere coprono diverse aree, mentre l’NVR riunisce tutto in un unico sistema per il monitoraggio e la gestione centralizzati. Guarda i video in diretta da più telecamere, conserva tutte le registrazioni in un unico posto e rivedi facilmente gli eventi importanti senza dover gestire ogni dispositivo separatamente. Dall’ingresso al vialetto, al giardino e alle altre aree chiave, il sistema completo ti offre una visione più chiara e completa della tua proprietà.

Guarda i dettagli. Ascolta cosa succede.

Il microfono integrato ad alta sensibilità registra i suoni dell’ambiente insieme al video, permettendoti di sentire ciò che accade nell’area monitorata. Guarda da remoto il video in diretta con audio oppure rivedi le registrazioni con il sonoro quando si verifica un evento. Dalle voci vicino all’ingresso ai rumori insoliti intorno alla proprietà, l’audio offre dettagli aggiuntivi per comprendere meglio ogni situazione.

Funzioni essenziali per la sicurezza quotidiana

  • Compressione H.265+

    La tecnologia di compressione avanzata H.265+ riduce l’utilizzo della larghezza di banda e dello spazio di archiviazione mantenendo un’elevata qualità dell’immagine, consentendo registrazioni più lunghe ed efficienti.

  • Protezione IP67

    Grazie alla struttura resistente alle intemperie con grado di protezione IP67, la telecamera resiste a polvere, pioggia e condizioni esterne difficili, garantendo un funzionamento affidabile a temperature da -30 °C a 60 °C.

  • Accesso remoto

    Resta connesso al tuo sistema di sicurezza ovunque ti trovi. Guarda i video in diretta, controlla gli avvisi e accedi alle registrazioni da remoto tramite smartphone, tablet o computer.

  • PoE e DC 12 V

    Scegli tra alimentazione PoE e DC 12 V in base alle esigenze di installazione. Con PoE, alimentazione e dati vengono trasmessi tramite un unico cavo Ethernet, per un cablaggio più semplice e affidabile.

Download H800 Specification

What's in the Box (I91DL)
  • ➀ 1X/4X Security Camera(s)
  • ➁ 1X/4X Mounting Screw Bag(s)
  • ➂ 1X User Manual
  • I91DL Camera
    Image Sensor1/2.4" Progressive Scan CMOS Max resolution3840*2160(8MP)
    Main Stream50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    Substream50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
    60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
    Video Bitrate32 Kbps - 16 Mbps Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC
    Audio InputBuilt-in Microphone, record with audio Lens4 mm
    Video CompressionMain stream: H.265+/H.265/H.264+/H.264
    Sub-stream: H.265/H.264/MJPEG
    Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
    Angle of ViewHorizontal FOV 78°, vertical FOV 38°, diagonal FOV 96° Supplement Light TypeSmart Dual-Light, IR, White Light
    Supplement Light RangeUp to 30 m Motion detection 2.0Supoort, include Human & Vehicle detection
    Image EnhancementBLC, HLC, 3D DNR Wide Dynamic Range120 dB WDR
    ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP APIOpen Network Video Interface Version (Profile S, Profile T, Profile G)
    Region of Interest (ROI)1 fixed region for main stream Privacy Mask4 programmable polygon privacy masks
    General FunctionRotate mode, mirror, password protection, remote access Ethernet1 RJ45 10 M/100 M self-adaptive Ethernet port
    Image Sensor1/2.4" Progressive Scan CMOS
    Main Stream50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    Video Bitrate32 Kbps - 16 Mbps
    Audio InputBuilt-in Microphone, record with audio
    Video CompressionMain stream: H.265+/H.265/H.264+/H.264
    Sub-stream: H.265/H.264/MJPEG
    Angle of ViewHorizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°
    Supplement Light RangeUp to 30 m
    Image EnhancementBLC, HLC, 3D DNR
    ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
    Region of Interest (ROI)1 fixed region for main stream
    General FunctionRotate mode, mirror, password protection, remote access
    Max resolution 3840*2160(8MP)
    Substream 50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
    60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
    Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC
    Lens 4 mm
    Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
    Supplement Light Type Smart Dual-Light, IR, White Light
    Motion detection 2.0 Supoort, include Human & Vehicle detection
    Wide Dynamic Range 120 dB WDR
    API Open Network Video Interface Version (Profile S, Profile T, Profile G)
    Privacy Mask 4 programmable polygon privacy masks
    Ethernet 1 RJ45 10 M/100 M self-adaptive Ethernet port
    I91DL General
    HousingMetal & Plastic ColorWhite & Black
    StorageBuilt-in microSD/SDHC/SDXC Slot, up to 512 GB Hardware ResetYes
    Operating PowerDC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W Operating Temperature-22 °F – 140 °F/-30 °C – 60 °C
    Indoor/Outdoor UseIndoor/Outdoor Interface ProtectionIP67
    Dimension (L X W X H)170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7") Weight0.6 lb./285 g
    HousingMetal & Plastic
    StorageBuilt-in microSD/SDHC/SDXC Slot, up to 512 GB
    Operating PowerDC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
    Indoor/Outdoor UseIndoor/Outdoor
    Dimension (L X W X H)170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7")
    Color White & Black
    Hardware Reset Yes
    Operating Temperature -22 °F – 140 °F/-30 °C – 60 °C
    Interface Protection IP67
    Weight 0.6 lb./285 g
    What's in the Box (I91DF)
  • ➀ 1X/4X Security Camera(s)
  • ➁ 1X/4X Mounting Screw Bag(s)
  • ➂ 1X User Manual
  • I91DF Camera
    Image Sensor1/2.4" Progressive Scan CMOS Max resolution3840*2160(8MP)
    Video Bitrate32 Kbps - 16 Mbps Audio Compression3G.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC
    Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR Angle of ViewHorizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°
    Video CompressionMain stream: H.265+/H.265/H.264+/H.264
    Sub-stream: H.265/H.264/MJPEG
    Supplement Light TypeSmart Dual-Light, IR, White Light
    Supplement Light RangeUp to 30 m Motion detection 2.0Supoort, include Human & Vehicle detection
    Audio InputBuilt-in Microphone, record with audio Lens4 mm
    Main Stream50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    Substream50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
    60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
    Image EnhancementBLC, HLC, 3D DNR Wide Dynamic Range120 dB WDR
    ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP APIOpen Network Video Interface Version (Profile S, Profile T, Profile G)
    Region of Interest (ROI)1 fixed region for main stream Privacy Mask4 programmable polygon privacy masks
    General FunctionRotate mode, mirror, password protection, remote access Ethernet1 RJ45 10 M/100 M self-adaptive Ethernet port
    Image Sensor1/2.4" Progressive Scan CMOS
    Video Bitrate32 Kbps - 16 Mbps
    Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
    Video CompressionMain stream: H.265+/H.265/H.264+/H.264
    Sub-stream: H.265/H.264/MJPEG
    Supplement Light RangeUp to 30 m
    Audio InputBuilt-in Microphone, record with audio
    Main Stream50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    Image EnhancementBLC, HLC, 3D DNR
    ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
    Region of Interest (ROI)1 fixed region for main stream
    General FunctionRotate mode, mirror, password protection, remote access
    Max resolution 3840*2160(8MP)
    Audio Compression 3G.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC
    Angle of View Horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°
    Supplement Light Type Smart Dual-Light, IR, White Light
    Motion detection 2.0 Supoort, include Human & Vehicle detection
    Lens 4 mm
    Substream 50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
    60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
    Wide Dynamic Range 120 dB WDR
    API Open Network Video Interface Version (Profile S, Profile T, Profile G)
    Privacy Mask 4 programmable polygon privacy masks
    Ethernet 1 RJ45 10 M/100 M self-adaptive Ethernet port
    I91DF General
    HousingMetal & Plastic ColorWhite
    StorageBuilt-in microSD/SDHC/SDXC Slot, up to 512 GB Hardware ResetYes
    Operating PowerDC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W Operating Temperaturet-22 °F – 140 °F/-30 °C – 60 °C
    Indoor/Outdoor UseIndoor/Outdoor Interface ProtectionIP67 & IK08
    Dimension (L X W X H)Ø121.4 mm × 97.6 mm (Ø4.78" × 3.84") Weight1.2 lb./550 g
    HousingMetal & Plastic
    StorageBuilt-in microSD/SDHC/SDXC Slot, up to 512 GB
    Operating PowerDC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
    Indoor/Outdoor UseIndoor/Outdoor
    Dimension (L X W X H)Ø121.4 mm × 97.6 mm (Ø4.78" × 3.84")
    Color White
    Hardware Reset Yes
    Operating Temperaturet -22 °F – 140 °F/-30 °C – 60 °C
    Interface Protection IP67 & IK08
    Weight 1.2 lb./550 g
    What's in the Box (I91DM)
  • ➀ 1X/4X Security Camera(s)
  • ➁ 1X/4X Mounting Screw Bag(s)
  • ➂ 1X User Manual
  • ➃ 1X Screw Driver (For dome camera only)
  • I91DM Camera
    Image Sensor1/2.4" Progressive Scan CMOS Max resolution3840*2160(8MP)
    Main Stream50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    Substream50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
    60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
    Video Bitrate32 Kbps - 16 Mbps Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC
    Audio InputBuilt-in Microphone, record with audio Lens4 mm
    Video CompressionMain stream: H.265+/H.265/H.264+/H.264
    Sub-stream: H.265/H.264/MJPEG
    Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
    Angle of ViewHorizontal FOV 78°, vertical FOV 38°, diagonal FOV 96° Supplement Light TypeSmart Dual-Light, IR, White Light
    Supplement Light RangeIR: up to 30 m, white Light: up to 20 m Motion detection 2.0Supoort, include Human & Vehicle detection
    Image EnhancementBLC, HLC, 3D DNR Wide Dynamic Range120 dB WDR
    ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP APIOpen Network Video Interface Version (Profile S, Profile T, Profile G)
    Region of Interest (ROI)1 fixed region for main stream Privacy Mask4 programmable polygon privacy masks
    General FunctionRotate mode, mirror, password protection, remote access Ethernet1 RJ45 10 M/100 M self-adaptive Ethernet port
    Image Sensor1/2.4" Progressive Scan CMOS
    Main Stream50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    Video Bitrate32 Kbps - 16 Mbps
    Audio InputBuilt-in Microphone, record with audio
    Video CompressionMain stream: H.265+/H.265/H.264+/H.264
    Sub-stream: H.265/H.264/MJPEG
    Angle of ViewHorizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°
    Supplement Light RangeIR: up to 30 m, white Light: up to 20 m
    Image EnhancementBLC, HLC, 3D DNR
    ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
    Region of Interest (ROI)1 fixed region for main stream
    General FunctionRotate mode, mirror, password protection, remote access
    Max resolution 3840*2160(8MP)
    Substream 50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
    60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
    Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC
    Lens 4 mm
    Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
    Supplement Light Type Smart Dual-Light, IR, White Light
    Motion detection 2.0 Supoort, include Human & Vehicle detection
    Wide Dynamic Range 120 dB WDR
    API Open Network Video Interface Version (Profile S, Profile T, Profile G)
    Privacy Mask 4 programmable polygon privacy masks
    Ethernet 1 RJ45 10 M/100 M self-adaptive Ethernet port
    I91DM General
    HousingMetal & Plastic ColorWhite
    StorageBuilt-in microSD/SDHC/SDXC Slot, up to 512 GB Hardware ResetYes
    Operating PowerDC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W Operating Temperature-22 °F – 140 °F/-30 °C – 60 °C
    Indoor/Outdoor UseIndoor/Outdoor Interface ProtectionIP67
    Dimension (L X W X H)Ø110 mm × 89.2 mm (Ø4.3" × 3.5") Weight0.7 lb./340 g
    HousingMetal & Plastic
    StorageBuilt-in microSD/SDHC/SDXC Slot, up to 512 GB
    Operating PowerDC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
    Indoor/Outdoor UseIndoor/Outdoor
    Dimension (L X W X H)Ø110 mm × 89.2 mm (Ø4.3" × 3.5")
    Color White
    Hardware Reset Yes
    Operating Temperature -22 °F – 140 °F/-30 °C – 60 °C
    Interface Protection IP67
    Weight 0.7 lb./340 g
    NVR Video & Audio
    Video CompressionH.264+/H.264/H.265/H.265+/MPEG4 IP Video Input8CH PoE
    Video OutputHDMI up to 4K; VGA up to 1080p Audio Input/Output1/1 RCA
    Incoming Bandwidth80 M Max Recording ResolutionUp to 8MP (3840 X 2160)
    Max Playback ResolutionUp to 8MP (3840 X 2160) Max Playback Channel8CH
    Max Playback Capacity4CH @1080p; 1CH @8MP
    Video CompressionH.264+/H.264/H.265/H.265+/MPEG4
    Video OutputHDMI up to 4K; VGA up to 1080p
    Incoming Bandwidth80 M
    Max Playback ResolutionUp to 8MP (3840 X 2160)
    Max Playback Capacity4CH @1080p; 1CH @8MP
    IP Video Input 8CH PoE
    Audio Input/Output 1/1 RCA
    Max Recording Resolution Up to 8MP (3840 X 2160)
    Max Playback Channel 8CH
    NVR Hard Drive
    HDD1 SATA Interface HDD CapacityUp to 6 TB Capacity for Each HDD
    HDD1 SATA Interface
    HDD Capacity Up to 6 TB Capacity for Each HDD
    NVR External Interface
    Network InterfaceRJ45 X1 (10/100M ) PoE8 Ports (IEEE802.3at / af)
    USB2X USB 2.0
    Network InterfaceRJ45 X1 (10/100M )
    USB2X USB 2.0
    PoE 8 Ports (IEEE802.3at / af)
    NVR General
    Operating PowerDC 48 V Working Temperature14 °F — 131 °F/-10 °C — +55 °C
    Dimensions (W X H X D)12.5 ” X 9.4” X 1.9”/315 X 240 X 48 mm Weight (Without Hard Disk)2.2 lbs./1 kg
    Power Consumption≤10 W (Without HDD and PoE)
    PoE: Max 25.5 W for Single Port
    Operating PowerDC 48 V
    Dimensions (W X H X D)12.5 ” X 9.4” X 1.9”/315 X 240 X 48 mm
    Working Temperature 14 °F — 131 °F/-10 °C — +55 °C
    Weight (Without Hard Disk) 2.2 lbs./1 kg
    Power Consumption≤10 W (Without HDD and PoE)
    PoE: Max 25.5 W for Single Port
